Low-Pressure Nanofiltration Membrane – STM-NF Series
Engineered for Selective Organic Removal in Industrial Wastewater
Low-Pressure Nanofiltration Membrane – STM-NF Series

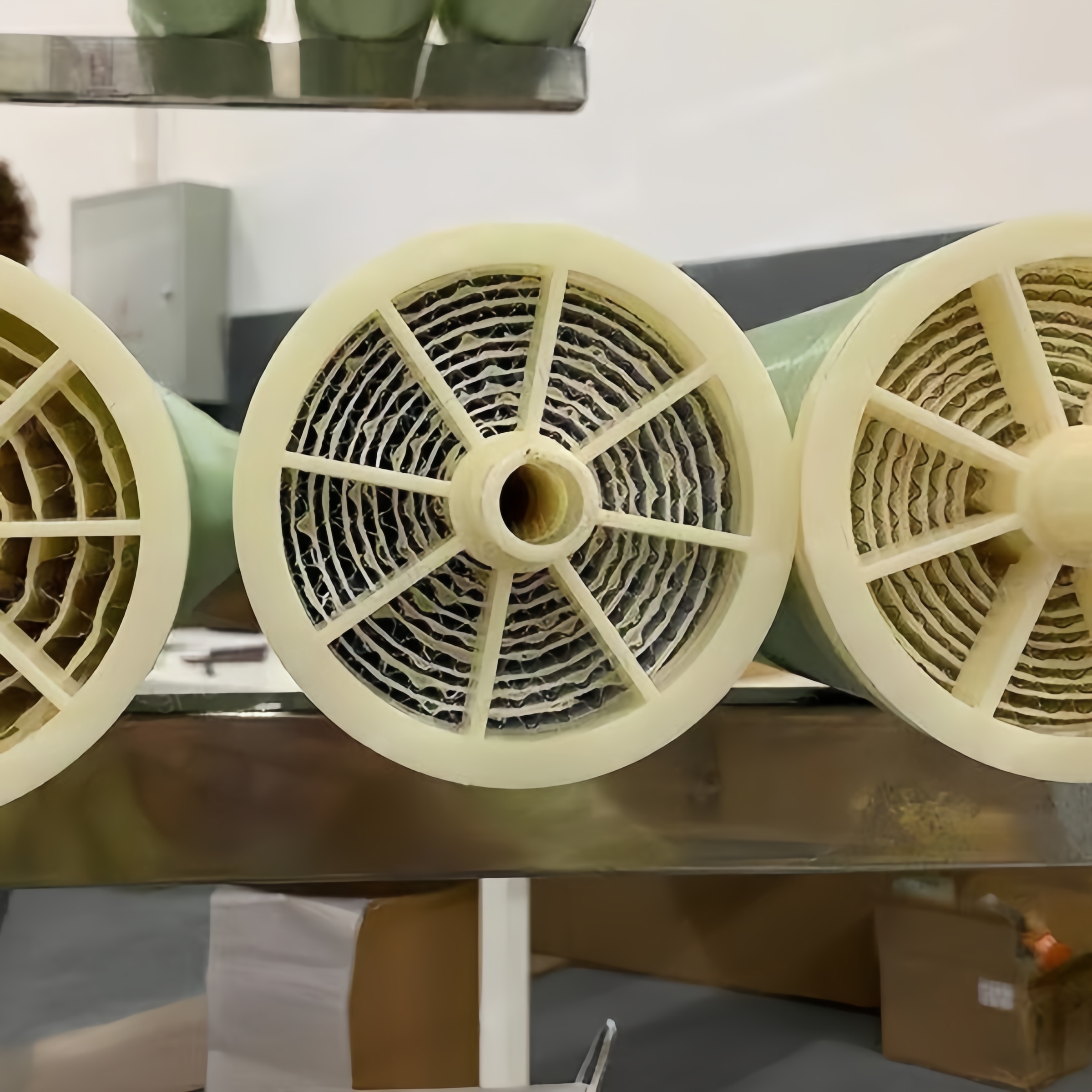

Poseidon’s Spi-Tub-Mem® (STM) spiral-wound membrane elements include pressure-type and immersion-type configurations, available in ultrafiltration, special nanofiltration, and standard nanofiltration (STM-NF) series. The STM-NF series features three common molecular weight cut-off options: NF300, NF500, and NF1000, as well as specialized membranes designed to remove organic matter without desalination.
Designed for low-pressure operation, these membranes effectively remove targeted organics from industrial reverse osmosis concentrates and landfill leachate. They retain minimal dissolved salts, enabling selective separation with high efficiency.
Key Features:
• Wider feed channels reduce concentration polarization and enhance surface flow
• High packing density improves filtration efficiency and reduces equipment footprint
• Strong anti-fouling performance ensures stable operation and lower energy use
• Low investment and operating costs due to efficient design and long service life
Applications:
• Treatment of RO concentrate streams
• Landfill leachate treatment
• Industrial wastewater reuse
• Organic removal without salt rejection
Pricing is provided upon technical review. Contact us for a project-specific quotation.
STM-NF300 Industrial Module Model and Performance Parameter Sheet
Test conditions: Inlet water temperature 25℃; Inlet water pH 7-8
STM-NF500 Industrial Module Model and Performance Parameter Sheet
Test conditions: Inlet water temperature 25℃; Inlet water pH 7-8
operating condition
Inlet and outlet water quality indexes of sprial material membrane
（From left to right: feed water, outlet water 1, outlet water 2, concentrated water）
Typical Applications
• Concentration and separation of target materials in process streams
• COD reduction in reverse osmosis concentrate
• Organic load removal from landfill leachate concentrate
• Separation and concentration of organic compounds in industrial wastewater
• Recovery of organic carbon sources from food processing or kitchen wastewater
